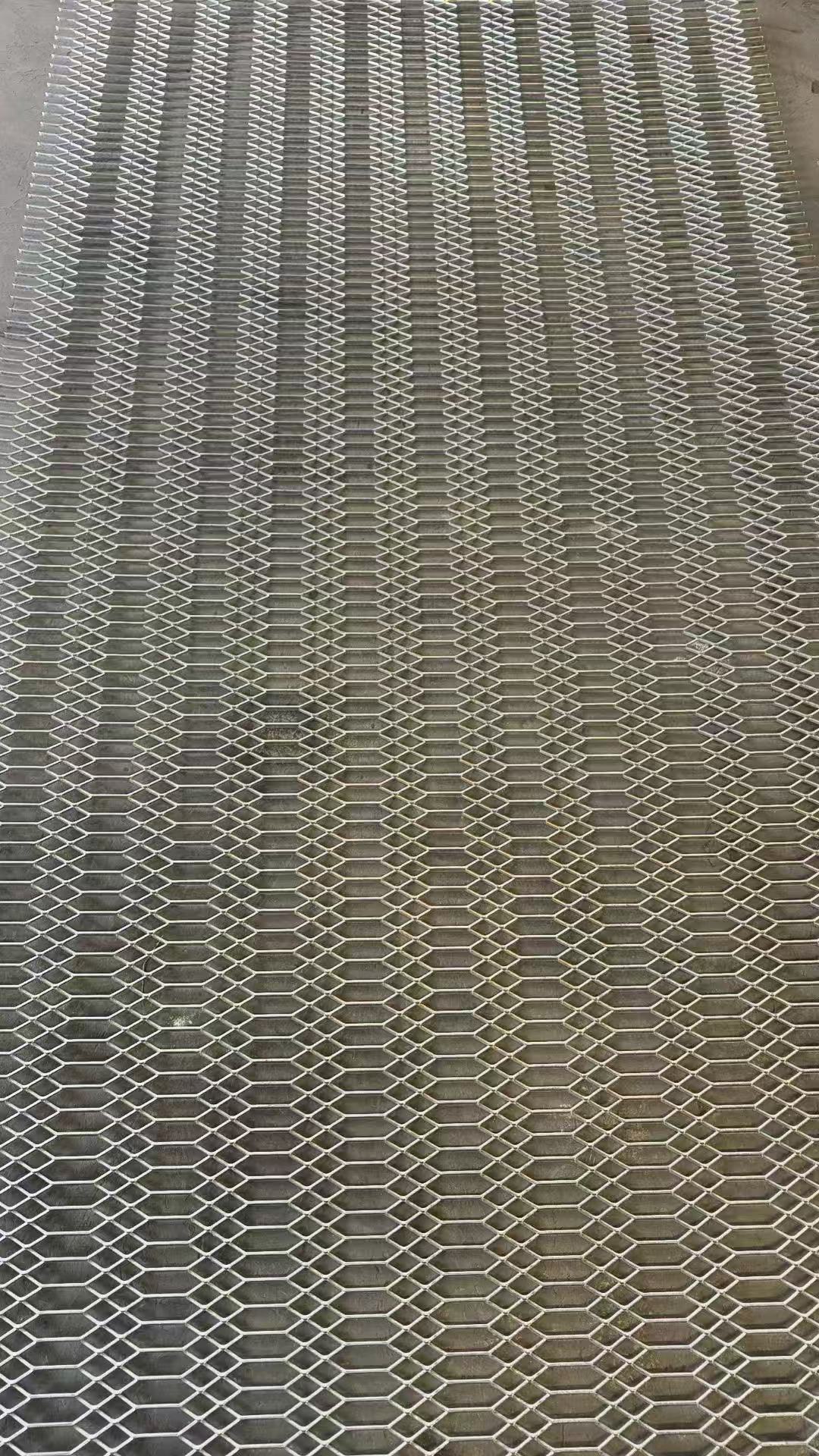

expanded metal mesh

Short Description:

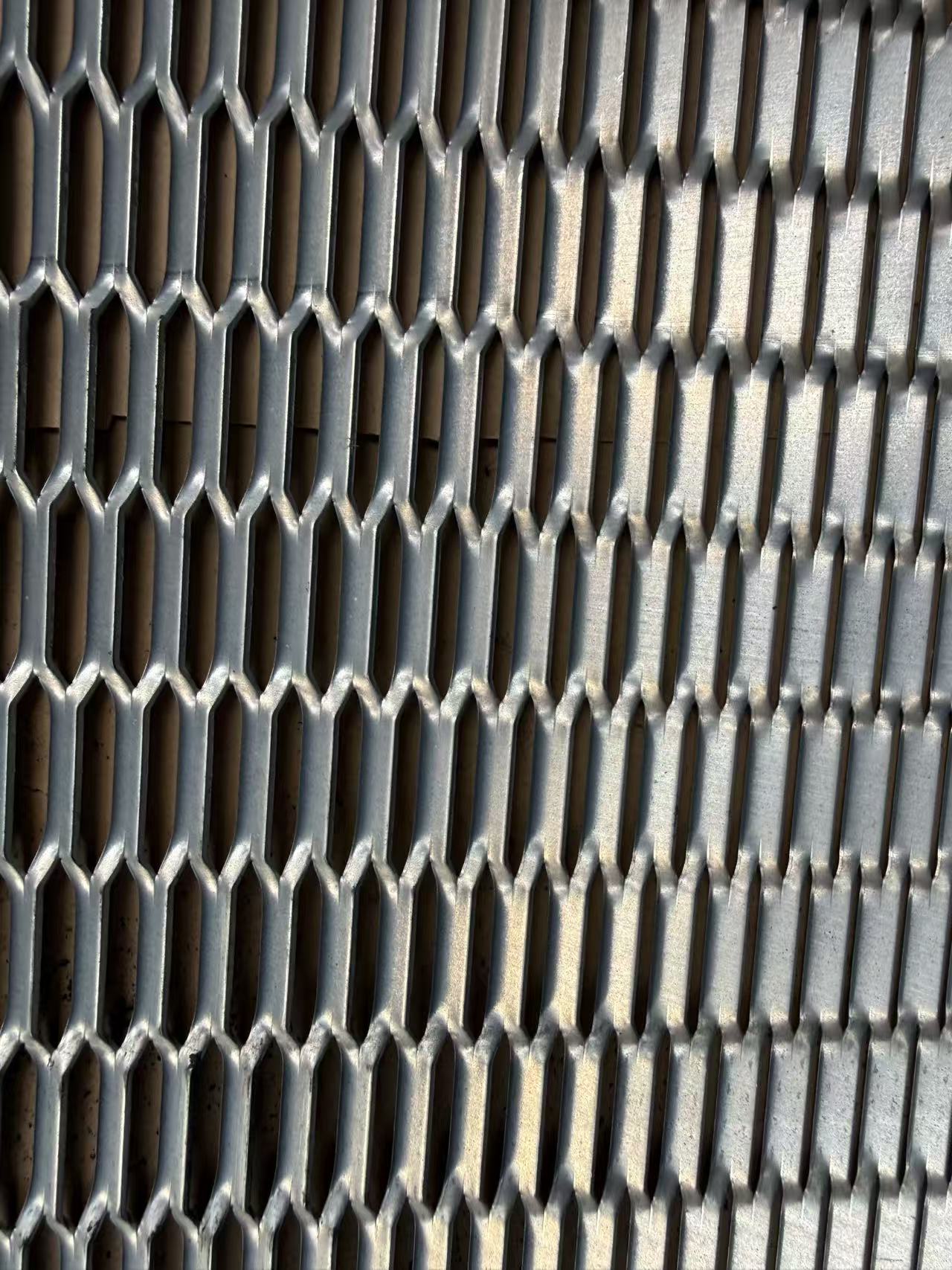

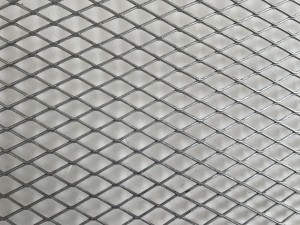

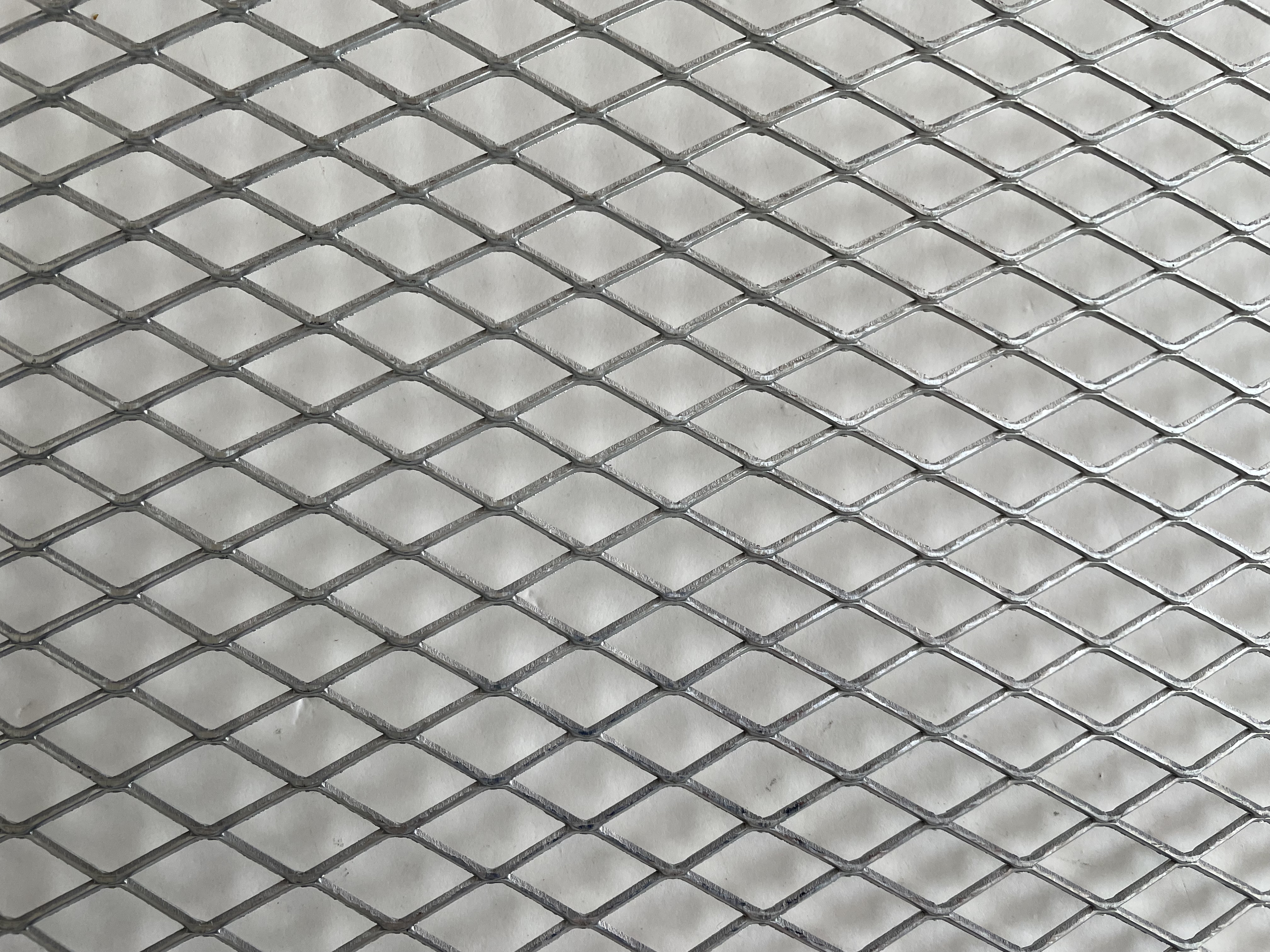

Expanded metal mesh is also called pulled plate wire mesh. A rigid piece of metal that has been slit and drawn into an open mesh pattern in a single operation. It is stronger, lighter in weight and more rigid than the original base metal. Conventional mesh is formed in a diamond pattern. It has other pattern of square, round, triangle, scale-like opening. Widely used in the agriculture, construction, medicine, filtering, paper-making, handicraft -making etc. We can supply expanded metal mesh in rolls or sheets of different sizes.

Use: Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, and highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.

Material: Steel Plate, Aluminum Plate, Stainless Steel Plate, Titanium Plate, Alum-Platinum Plate, Lead Plate and Nickel Plate, etc.

Width: 0.5-5m
Length: 0.5-30m
Thickness: 0.5-15mm

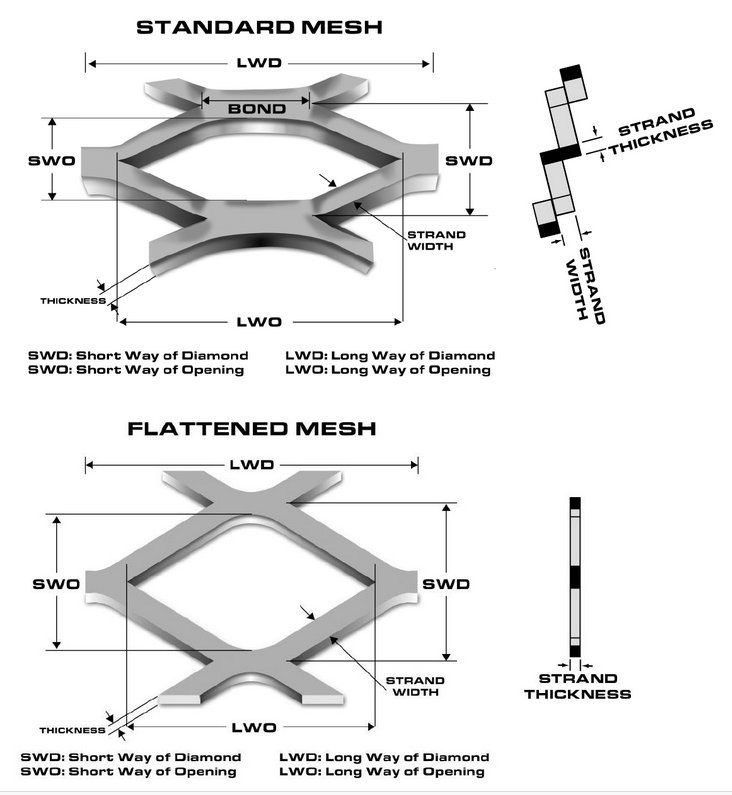

Long way of mesh: 12.5-200mm;
Short way of mesh: 5-80mm;

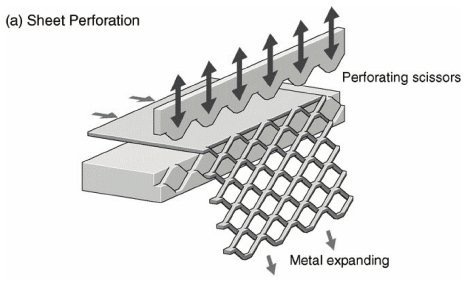

Craft: press and expand

Expanded metal mesh at length from 600-4000mm and width from 600-2000m

specifications				width (m)	length (m)	weight (kg/m²)
mesh thickness (mm)	distance short (mm)	distance long (mm)	strip (mm)	width (m)	length (m)	weight (kg/m²)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5.00
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26
