Electro galvanized iron wire binding wire

Short Description:

Electro galvanized iron wire, also known as cold galvanized wire, is manufactured using high-quality carbon steel wire and processed through electrolytic equipment for galvanization. Although the zinc coating is not very thick, electro galvanized wire provides sufficient anti-corrosion and anti-oxidation properties with a smooth and bright surface. The zinc coating typically ranges from 8-50 g/m2 and is commonly used in the production of nails, wire ropes, mesh fencing, etc.


  • Material:: high quality Q195,low carbon steel iron wire
  • Wire gauge: BWG 6-34
  • Product Detail

    Product Tags

    Specifications

    Wire Gauge

    SWG in mm

    BWG in mm

    In Metric System mm

    6#

    4.877

    5.156

    5.00

    7#

    4.47

    4.572

    4.50

    8#

    4.06

    4.19

    4.00

    9#

    3.66

    3.76

    3.70

    10#

    3.25

    3.40

    3.50

    11#

    2.95

    3.05

    3.00

    12#

    2.64

    2.77

    2.80

    13#

    2.34

    2.41

    2.50

    14#

    2.03

    2.11

    2.00

    15#

    1.83

    1.83

    1.80

    16#

    1.63

    1.65

    1.65

    17#

    1.42

    1.47

    1.40

    18#

    1.22

    1.25

    1.20

    19#

    1.02

    1.07

    1.00

    20#

    0.91

    0.89

    0.90

    21#

    0.81

    0.813

    0.80

    22#

    0.71

    0.711

    0.70

    23# to 34# also available for galvanized iron wire.

    • Electro Galvanized Wire:
    • Specification: 0.28mm-5.0mm
    • Tensile strength:300-1400N/mm2
    • Elongation: 15%
    • Zinc coating: 8-50g/ m2

    Features

    Electro galvanized iron wire is made with mild steel, hard-drawn, then galvanized. It is rust-resistant, and very versatile in applications. Electro galvanized iron wire can be supplied in the form of coil wire, spool wire or further processed into straightened cut wire or U type wire.

    Application

    Electro galvanized iron wire is mainly used in construction as binding wire, express way fencing as fencing wire, binding of flowers as wire ties in the garden and yard, and wire mesh making as weaving wires´╝îCommunication devices, medical treatment equipment, weaving of wire mesh, making of brushes, steel rope, filter wire mesh, high pressure pipes, construction, arts and crafts, etc.

    Electro galvanized iron wire, or simply written as galvanized wire, is one of the primary wire products of Yutai company

    Packing

    In coils and from 0.5kgs/coil to 800kgs/coil then each coil to be wrapped inside with PVC strips and outside with Hessian cloth or inside with PVC strips and outside with weaving bag.

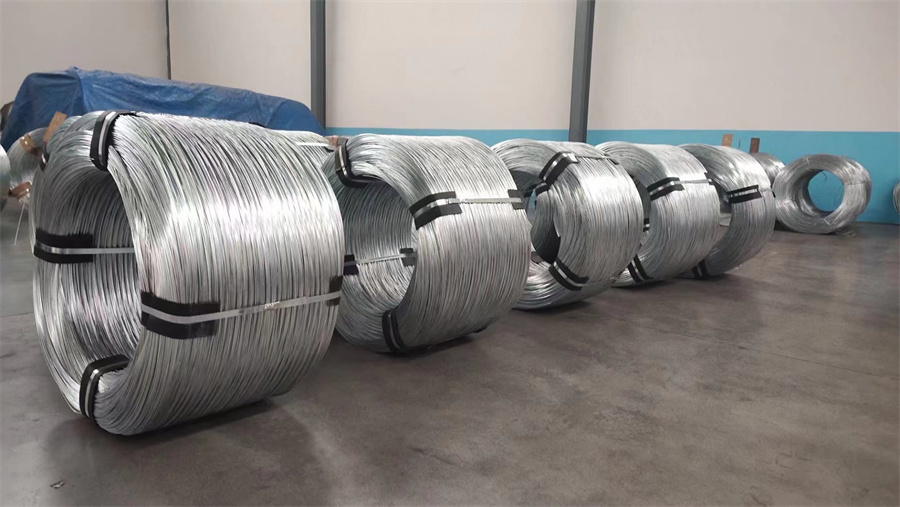

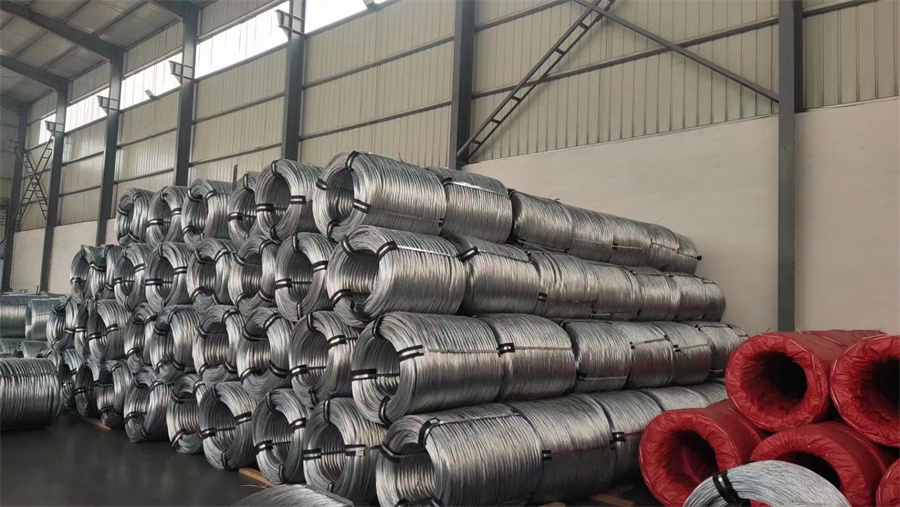

    Details
