Stainless steel rope mesh for decorative and protection

Short Description:

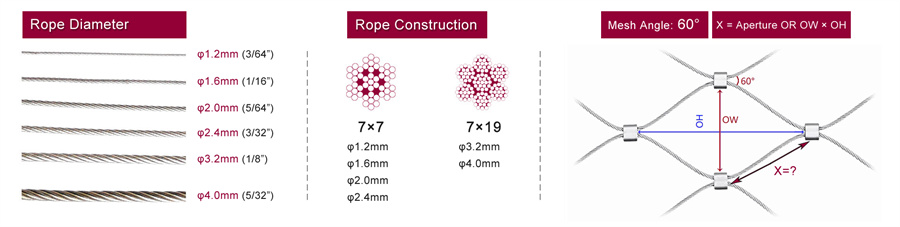

wire rope structure: 7×7 rope, 7×19 rope.
Mesh specifications: 20×20mm, 30×30mm, 38×38mm, 51×51mm, 60×60mm, 76×76mm, 90×90mm, 102×102mm, 120×120mm, 150×150mm.
Diameter of wire rope: 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm.
Material: stainless steel 304, 304A 316, 316L.
Size: according to the size of customer’s construction scope and site, customized production after designing drawings.

The size of stainless steel rope mesh needs to be selected according to the actual application environment.  In order to facilitate customers to choose, Yutai stainless steel rope network factory will recommend common specifications for customers according to the installation experience, if the application environment is special, engineers can carry out on-site investigation, according to your requirements and specific application environment, put forward detailed material, rope diameter, hole distance and overall structure, and guide the installation.

Product Detail

Product Tags


Yutai stainless steel rope net is widely used in zoos, wildlife parks, Marine parks and other similar environment of animal cage net, animal fence net, animal purse Seine, bird net, bird forest net, garden decoration and protection construction.  In addition, the products are also applicable to stadium fence, acrobatic performance protective net, construction net decoration, municipal construction, bridge fence net and scenic area protective net decoration, park landscaping and greening decoration, exhibition hall exhibition, opera house, playground, supermarket, airport and many other fields.  Yutai stainless steel rope net is the ideal choice for modern decoration and protection. With the innovative production of products, Yutai stainless steel rope net will be more widely used in many fields of production and life.

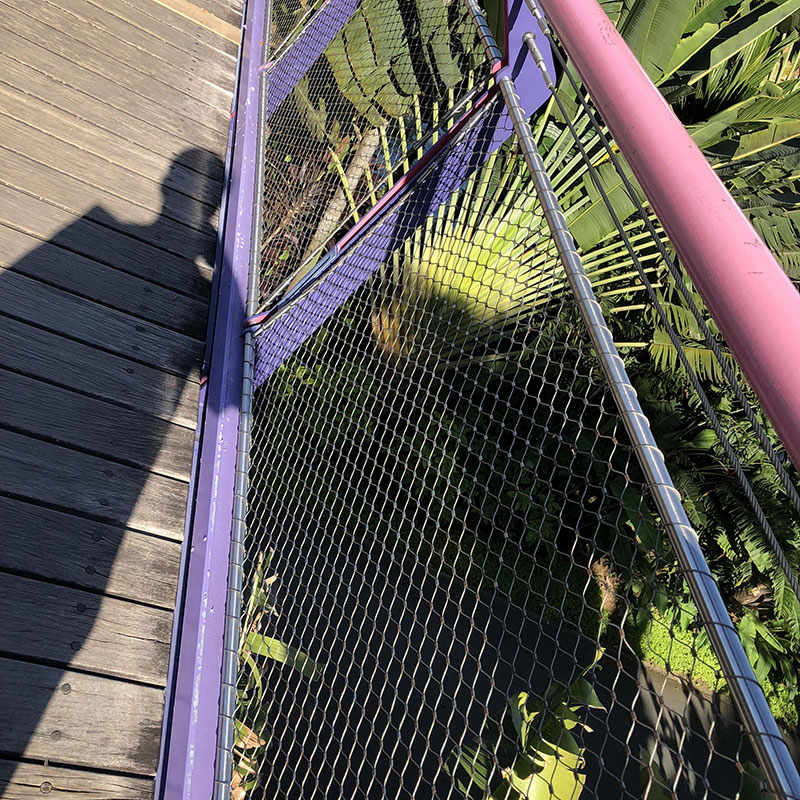

Stainless steel rope mesh9

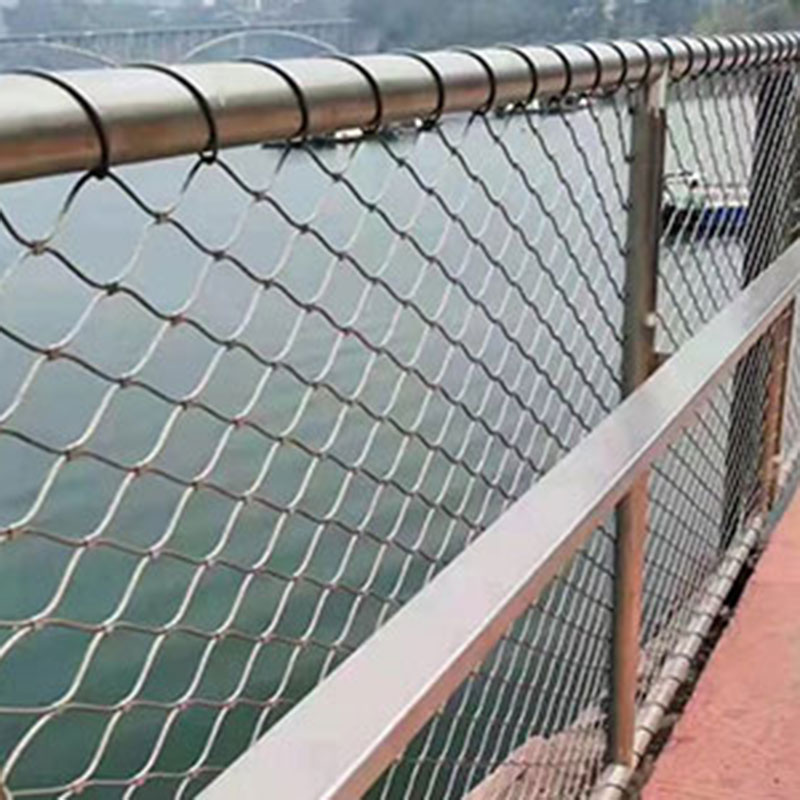

Stainless steel rope mesh5

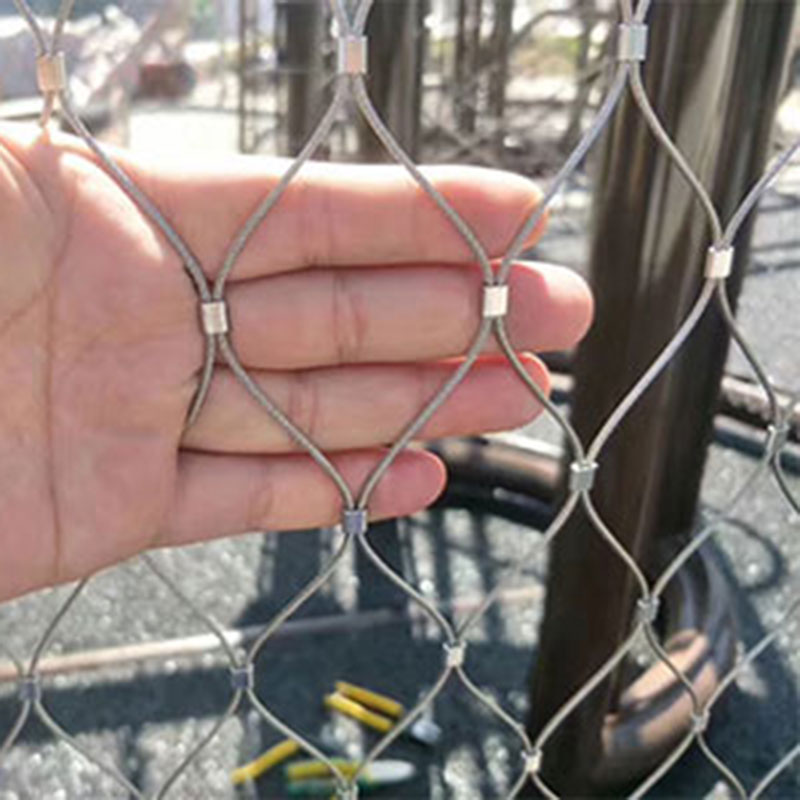

Stainless steel rope mesh3

Installation steps

1. Pull the net open and tie the four corners of the net with disposable tie
2. The upper and lower ends shall be fixed with ties every 30cm
3. The left and right sides shall be fixed with ties every 10cm
4. Tighten the left and right ties
5. Check the mesh surface to make it flat
6. Prepare the steel wire rope for edge banding
7. Edge sealing around the frame from the top
8. Adjust the mesh surface again through the steel wire to make it flat
9. Cut the excess steel wire with a tool to remove the excess disposable tie
